Steel Rule Cutter
Steel Rule Cutter
Our organization has gained a trusted position in this domain by manufacturing and supplying a precisely designed range of Steel Rule Cutter. Designed with utmost precision, this cutter is suitable to be use in die cutting machines. Further, our offered range is manufactured using high-end technology and premium quality carbon steel by our adept professionals. We offer this Steel Rule Cutter in various sizes and other related specifications as per client's exact requirements.
Features:
-
Rust resistance
-
Precise design
-
Sharpness
-
Industry approved finish
-
Elevated quality

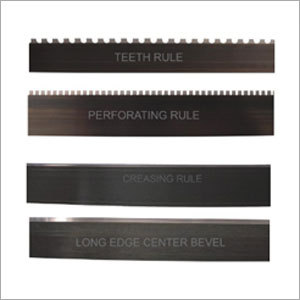

Various Rule Types: Cutting Rule, Creasing Rule, Perforating Rule, Wave Rule, Zipper Rule, Label Rule and etc.
Application Arrange: ABM machine, Bending Machine, Die Cutting Machine
Features:
Steel rules are made of high quality carbon steel strips by advanced equipment adopted special processing techniques.
The rules suitable for die cutting machine.
Technical Specifications
| Thickness | |||||
| 0.45mm | 0.53mm | 0.71mm | 1.07mm | 1.42mm | 2.10mm |
| 1.27PT | 1.5PT | 2PT | 3PT | 4PT | 6PT |
| Description | Size mm (thickness) | Height/length (mm/mm) | Package (pcs/box) | Body hardness | Edge angle |
| Cutting rule | 0.45 | 23.80/1000 | 150 | 38HRC-54HRC | 42o\52o |
| 0.53 | 23.80/1000 | 125 | |||
| 0.71 | 23.80/1000 | 100 | |||
| 1.05 | 23.80/1000 | 70 | |||
| 1.4 | 23.80/1000 | 50 | |||
| Creasing rule | 0.53 | 22.00/23.80/1000 | 125 | 38HRC-54HRC |
|
| 0.71 | 22.9/23.5/1000 | 100 | |||
| 1.05 | 22.9/1000 | 70 | |||
| 1.42 | 22.9/1000 | 50 | |||
| 1.5 | 22.9/1000 |
| |||
| 2 | 22.9/1000 | 35 | |||
| Wave rule | 0.71 | 23.80/1000 | 100 | 38HRC-54HRC |
|
| Glue Flap rule | 0.71 | 23.80/1000 |
| 38HRC-54HRC |
|
| Perforating rule | 0.71 | 23.80/1000 | 100 | 38HRC-54HRC | 42o\52o |
| 1.05 | 23.80/1000 |
|
|
| |
| Sharp teeth rule | 0.71 | 23.80/762 | 100 | 38HRC-54HRC | 42o\52o |
| Zipper rule | 0.71 | 23.80/1000 | 100 | 38HRC-54HRC |
|
| Cut Crease | 0.71 | 23.80/1000 | 100 | 38HRC-54HRC |
|
| 1.05 | 23.80/1000 | 70 | 38HRC-54HRC |
|
Packing
| Thickness | Box Quantity | Coil |
| 0.45mm(1.27PT) | 100pcs/box | 100m/coil |
| 0.53mm(1.5PT) | 100pcs/box | 100m/coil |
| 0.71mm(2PT) | 100pcs/box | 100m/coil |
| 1.07mm(3PT) | 70pcs/box | 70m/coil |
| 1.42mm(4PT) | 50pcs/box | 50m/coil |
| 2.10mm(6PT) | 35pcs/box | 35m/coil |
