Plasma Cutting Machine

Plasma Cutting Machine
Plasma Cutting Machine
Product Code : 07
Product Description

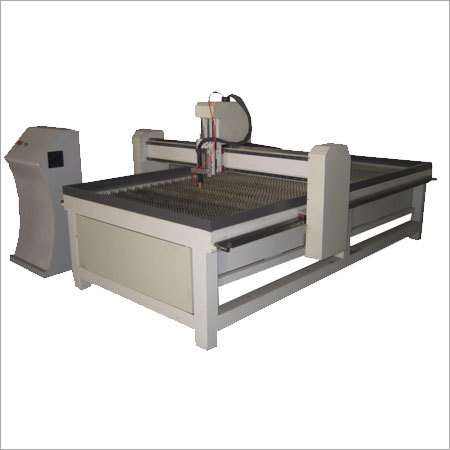

Plasma Cutting Machine

We have emerged as an eminent organization engaged in offering a premium grade Plasma Cutting Machine. Fabricated precisely using superior quality raw materials and with the help of advanced technology, this machine is highly treasured by our clients for its excellent performance, durability, high operational efficiency and perfect finish. Available in various specifications, this machine can also be designed as per the applications requirements detailed by our clients. In addition, we properly pack this Plasma Cutting Machine in order to ensure its safe and defect free transit to the clients' end.



Its cross beam have many specifications, both of them adopt dual drive and lineal guide. Torch quantity is optional according to users demands, also can be configured as abnormity cutting and strip cutting.


It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

Cross Beam Length(X axis)

Option(can be lengthened according to user's demand)

Longitudinal Rail Length(Y axis)

Option(Rail can be lengthened according to user's demand)

Effective Cutting Width (X axis)


Effective Cutting Length (Y axis)


Cutting Mode

Flame only, Plasma only, Flame and Plasma

Drive Mode


Drive Method

Rack and option drive for X and Y axes

Flame Cutting Thickness


Plasma Cutting Thickness

1-60mm (according to the specification of plasma power source)

Cutting Speed

0-3500mm per minute

Moving Precision

0.01mm per step

Power Source

220V 50Hz 500-1000W

Cutting Gas

Acetylene, Propane

Plasma Gas

Pressed air, Oxygen, N2

Motor step or Japan servo motor (passonic servo)

Power supply -America brand : hypertherm Thermaldyne

German brand: Kjellberg

Basic components

Cutting Mode

Plasma or Flame

Drive Mode

Servo motor ,Single-side or Dual-side

Cutting Torch Number

1 set

Driving Motor

Panasonic, Mitsubishi

NC Controller

SJTU-SK,ADT-HC6500, Micro EDGE, EDGE pro

Plasma Power

Thermadyne, Kjellberg, Hypertherm

Programming software




Other Data

Working temperature



<90%,no condensation


Ventilation, no big shake

Power voltage

3x380V-0% or up by user's local condition

Operation language

English or Chinese


Option Item

Integration, dust extraction

Heating and cooling systems
