CNC Engraving Machine

CNC Engraving Machine
CNC Engraving Machine
Product Code : MT1325
Product Description

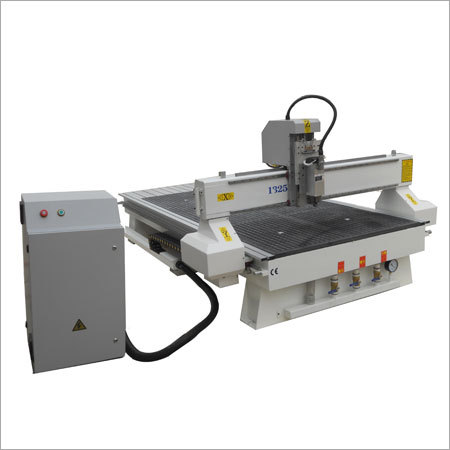

CNC Engraving Machine

The CNC Engraving Machine, offered by us is widely applicable in different industries for the engraving of various materials like plastic, copper, brass, aluminum, etc. Our dexterous professionals design this machine inoculating latest techniques keeping in mind the variegated needs of our clients. Highly cherished for its high performance, trouble free operation, sturdy construction and perfect finish, this machine is extensively demanded in domestic market. Further, we are offering this CNC Engraving Machine in proper packaging options to protect from any kind of damage during transit.


Specifications:

  • Glass engraving Y axis with double motor driving ensures stable and smooth movement of the machine.
  • High precision rack gear transmission ensures fast speed and high accuracy.
  • Taiwan HIWIN linear square guide rail ensures high accuracy and maximum work load.
  • Adopt vacuum system, made by advanced international technology, configured with vacuum pump of strong absorption, can absorb different size materials.(option)
  • Humanized design of vacuum table with T-slot and clamps, can absorb or clamp the material.
  • Intelligent protection of working table can avoid damage resulted from the wrong operation. Intelligent overrunning protection can avoid mechanical collision when set graphic exceeds processing size.
  • Automatic lubrication system fulfills the periodic lubrication maintenance just by one single touch.

Technical Specifications

Model

MT-1325

MT-1530

MT-2030

MT-2040

Working Size(mm)

1300x2500x200mm

1500x3000x200mm

2000x3000x200mm

2000x4000x200mm

Max Engraving Speed

20000mm/min

20000mm/min

20000mm/min

20000mm/min

Working Accuracy

<0.04/300mm

<0.04/300mm

<0.04/300mm

<0.04/300mm

Transmission

XY rack gear
Z ball screw
XY rack gear
Z ball screw
XY rack gear
Z ball screw
XY rack gear
Z ball screw

XY guide rail

Square Rail

Square Rail

Square Rail

Square Rail

Spindle Motor

4.5KW water cooling
(HSD air cooling)
5.5KW water cooling
(HSD air cooling)
5.5KWwater cooling
(HSD air cooling)
5.5KW water cooling
(HSD air cooling)

Spindle Speed

6000-24000rpm

6000-24000rpm

6000-24000rpm

6000-24000rpm

Tool Diameter

3.175, 6, 12.7

3.175, 6, 12.7

3.175, 6, 12.7

3.175, 6, 12.7

Dust Collector

3KW

3KW

3KW

3KW

Hold Method

Clamps or Vacuum

Clamps

Clamps

Clamps

Vacuum Power

5KW

5KW

5KW

5KW

Working Voltage

AC380V/50HZ

AC380V/50HZ

AC380V/50HZ

AC380V/50HZ

Motor/Driver

Japan Servo

450B Stepper
(Japan Servo )
450B Stepper
(Japan Servo )
450B Stepper
(Japan Servo )

Command Language

G code

G code

G code

G code

Control System

DSP

NCstudio System (DSP)

NCstudio System (DSP)

NCstudio System (DSP)

Optional Parts

Lathe bed

Cast

Welded steel

Spindle

Water-cooling

Air-cooling

Motor

Stepper

Servo

Table surface

PVC by clamp

Vacuum absorption

Control system

DSP

NC studio/Syntec/Baoyuan
