CNC Auto Bender

CNC Auto Bender
CNC Auto Bender
Product Code : 09
Product Description

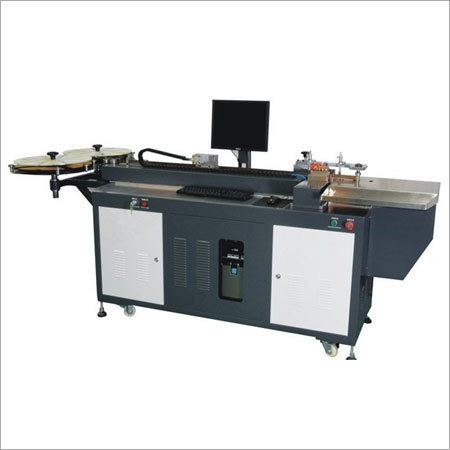

CNC Auto Bender For Die Board

Within a short span of time, we have garnered a huge client base all over the nation by providing an assorted gamut of CNC Auto Bender. Known for its easy operation, high efficiency, application-specific design and user-friendliness, this product is extensively used in packaging, printing and mold industries for bending, cutting and other similar operations. Our engineers design and manufacture this CNC Auto Bender using quality assured raw materials and by employing contemporary technology as per the set global norms

Features and functions

  • Process of automatic bending ,lipping  ,cutting ,bridging ,flat cutting and so on functions.
  • Our machine takes imported steel for bending mould which is tough, high strength, durable
  • With domestic unique rotary cutting mode and rotary lipping mode , the lip size can be adjusted. Cutter durability can be improved 3-5 times.
  • Through the gear transmission, high precision and stable
  • Self-developed updated automatic bending control system with powerful function.
  • Complete English interface ,easy to learn and easy to understand.
  • Roller continuous feeding with servo digtal work mode (No need to feed with tool post repeated ,high accuracy and speed)
  • Control system surport various kinds of file format,such as DXF ,AI,NC and so on.
  • Applicable to various kinds of process ,such as boxes ,dolls ,cartons ,flowers ,edition.
  • Approximate bending effect less time for fishing rule equipment ,high work efficient

Technical Specifications

Maximum angle

130

Minimum ARC radius of 180 degree

R3.0

Minimum ARC radius of 90 degree

R1.0

Minimum bending dimension

1mm

Minimum cut size

0.5mm

File format Supported

*AI,*dxf,*NC

Overall dimensions of machine

1400*640*1500mm

Computer configuration

Inter core2 E5300 ,19 inches LCD

Power Supply

220v,50hz

GW

200kg

Pressure

6kg

Power

2.2kw

MT-510

Function :Automatic bending ,cutting,lipping ,bridge.

Height of rule 8mm-30.0mm

Thickness of rule :0.45mm-1.07mm

Additional :

  • Lead rail (Guide)(THK(Japense)
  • Ball Screw (Japense material)
  • Automatic control System(ourself developed)
  • Servo motor (panasonic)

One more spareparts with machine and 100 meter free rule for test machine.

Spare parts including: Inner mould ,external mould ,cutter and lipper and bridge tool,air-tube ,some prepared screw.
